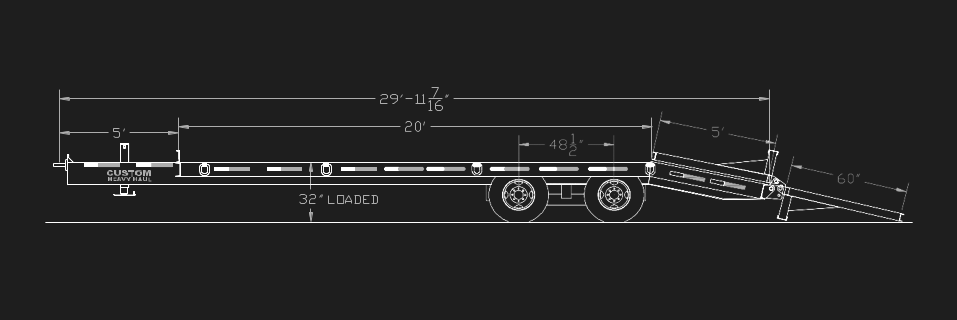

DO10T
| Model | 10T202ELP | 10T202ALP |
|---|---|---|
| Capacity | 20,000# | 20,000# |
| Overall Width | 96″/102″ Optional | 96″/102″ Optional |
| Deck Length | 20′ Flat / 5′ B.T. | 20′ Flat / 5′ B.T. |
| Main Frame | 12″@19 I-Beam | 12″@19 I-Beam |
| Siderails | 8″Channel | 8″Channel |
| Crossmembers | 3″ Channel | 3″ Channel |
| Axles | (2)10,000# G.D. | (2)10,000# H.D. |
| Brakes | 12 1/4″x3 3/8″ Electric | 12 1/4″x4″ Air Brakes w/(1) ABS |
| Suspension | Hutch 9700 | Hutch 9700 |
| Tires | 235/80R16 (8 Bolt Dual Wheel) | 235/80R16 (8 Bolt Dual Wheel) |
| Jack | 12,000# Side Wind | 12,000# Side Wind |
| Ramps | 20 1/2″”x60″ Ladder/Wood Fill | 20 1/2″”x60″ Ladder/Wood Fill |
| Tool Storage | Lockable Toolbox in Tongue | Lockable Toolbox in Tongue |
| Hitch | Adj. 3″ Pintle Ring | Adj. 3″ Pintle Ring |
| Safety Chains | 1/2″ Gr. 70 w/Safety Hooks | 1/2″ Gr. 70 w/Safety Hooks |
| Tie Downs | (4) 1″ D-Rings Ea. Side | (4) 1″ D-Rings Ea. Side |
| Lights | LED | LED |
| Decking | 2″ Nominal Oak | 2″ Nominal Oak |
| Paint | Black or Cat Yellow(Other Colors Optional) | Black or Cat Yellow(Other Colors Optional) |
| Option | Paver Ramp/ Hydraulic Ramp Different Deck Length | Paver Ramp/ Hydraulic Ramp Different Deck Length |
Questions about the DO10T? Call 770-233-1331 or email lucon_inc@yahoo.com.
